Monitoring the charge level of a 12V battery is crucial for maintaining its health and ensuring optimal performance. Whether you're using these batteries in vehicles, solar power systems, or other applications, a simple and effective way to check the battery voltage can save you time and prevent potential issues. In this blog post, we'll walk you through making a DIY 12V battery charging level indicator, also known as a battery voltage checker. This project is perfect for electronics enthusiasts and beginners alike.

Fig: 12V Battery Charging Level Indicator Schematic

How the Circuit Works

The LM3914 IC is designed to drive a 10-segment LED bar graph, making it ideal for visually representing voltage levels. As the input voltage varies, the IC lights up different numbers of LEDs. This makes it easy to see at a glance how much charge is left in your 12V battery.

Components:

• 1 x LM3914 LED bar graph driver IC
• 11 x LEDs (preferably different colors to show a gradient)
• Resistors (values will depend on your LEDs, typically 330 ohms)
• 10k ohm potentiometer
• 1k ohm resistor, 3.9k ohm, 18k ohm, 56k ohm
• 1 x AC 2 Pin Terminal Block
• Prototype board or PCB
• Connecting wires
• 12V battery (for testing)

Schematic Diagram Convert to PCB

Here is the 3D Design:

https://www.pcbway.com/?from=technology4power

Every electronic device needs PCBs. Are you looking for the Best PCB order? PCBWay is one the best PCB manufacturing companies. Order 10 pcs PCB for only $5. Visit now https://www.pcbway.com/?from=technology4power

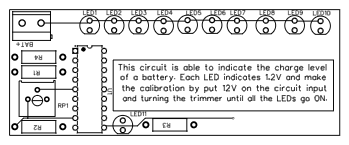

Fig: Top Layer

Fig: Bottom Layer

Tools:

• Soldering iron and solder
• Multimeter
• Wire cutters/strippers
• Screwdriver
• PCBs

How the Circuit Works

The LM3914 IC is designed to drive a 10-segment LED bar graph, making it ideal for visually representing voltage levels. As the input voltage varies, the IC lights up different numbers of LEDs. This makes it easy to see at a glance how much charge is left in your 12V battery.

Step-by-Step Guide

1. Circuit Design:

   • Connect the LEDs to the output pins (pins 10 to 18) of the LM3914.
   • Connect the positive terminal of the 12V battery to pin 3 (V+), and the negative terminal to ground (GND).
   • Use a 10k ohm potentiometer to adjust the reference voltage. Connect one side to pin 7 (Ref Out), the other side to GND, and the wiper to pin 8 (Ref Adj).
   • Add a 1k ohm resistor between pin 7 (Ref Out) and pin 8 (Ref Adj) to set the reference voltage range.

2. Assembling the Circuit:

   • Start by building the circuit on a breadboard. This allows for easy adjustments and troubleshooting.
   • Place the LM3914 IC on the breadboard and connect the LEDs, resistors, and potentiometer according to the schematic.
   • Ensure all connections are tight and correct. Double-check the polarity of the LEDs and the battery connections.

3. Testing:

   • Connect the 12V battery to the circuit.
   • Observe the LEDs. They should light up in sequence, depending on the battery voltage.
   • Adjust the potentiometer to calibrate the display. The goal is for the LEDs to represent the voltage range accurately (e.g., all LEDs lit at 15V, none lit at 10V).

4. Final Assembly:

   • Once the circuit works correctly on the breadboard, transfer it to a prototype board or a custom PCB.
   • Solder all the components in place, ensuring secure and neat connections.
   • If desired, mount the circuit in an enclosure. Drill holes for the LEDs, potentiometer adjustment, and power connectors.

5. Calibration and Usage:

• Use a multimeter to measure the exact voltage of the battery.
• Adjust the potentiometer so that the LED display accurately reflects the measured voltage.
• Label the enclosure with voltage levels corresponding to the number of lit LEDs for easy reference.

Video Reference:

https://www.pcbway.com/?from=technology4power

Every electronic device needs PCBs. Are you looking for the Best PCB order? PCBWay is one the best PCB manufacturing companies. Order 10 pcs PCB for only $5. Visit now https://www.pcbway.com/?from=technology4power

Tips for Success

• Safety: Always handle batteries with care. Avoid short circuits and ensure connections are secure.
• Component Quality: Use high-quality components to ensure the accuracy and reliability of your voltage checker.
• Prototyping: Test your circuit on a breadboard before soldering to avoid mistakes.

Conclusion

Creating a DIY 12V battery charging level indicator is a rewarding project that provides practical benefits. Not only will you learn more about electronics and circuit design, but you'll also end up with a useful tool for monitoring your batteries. This voltage checker can help extend the life of your batteries by preventing over-discharge and ensuring they are charged appropriately.

Happy building, and may your batteries always stay healthy!
