If you're working on electronics projects, an adjustable power supply is a handy tool that allows you to fine-tune voltage for a wide range of applications. In this tutorial, I'll show you how to build a simple yet reliable 1.2V to 30V adjustable power supply using readily available components, including the LM317T voltage regulator IC, 12-0-12 center-tapped transformer, and other basic components. Let’s dive in!

Components Required:

• LM317T Voltage Regulator IC: The heart of the project, capable of outputting a regulated voltage from 1.2V to 37V.

• 1N5399 Diodes (2 pcs): To create a bridge rectifier for converting AC to DC.

• 1000uF Electrolytic Capacitor: For smoothing out the rectified DC voltage.

• 104 Ceramic Capacitor: For filtering high-frequency noise.

• Variable Resistor (5K or 10K Potentiometer): To adjust the output voltage.

• Power Indicator LED: To indicate when the power supply is on.

• Resistor (330Ω for LED): To limit the current for the LED.

• 12-0-12 Center-Tapped Transformer: To step down AC mains voltage to a manageable level for the circuit.

• Heat Sink for LM317T: To dissipate heat generated by the voltage regulator.

• Wires and Soldering Supplies.

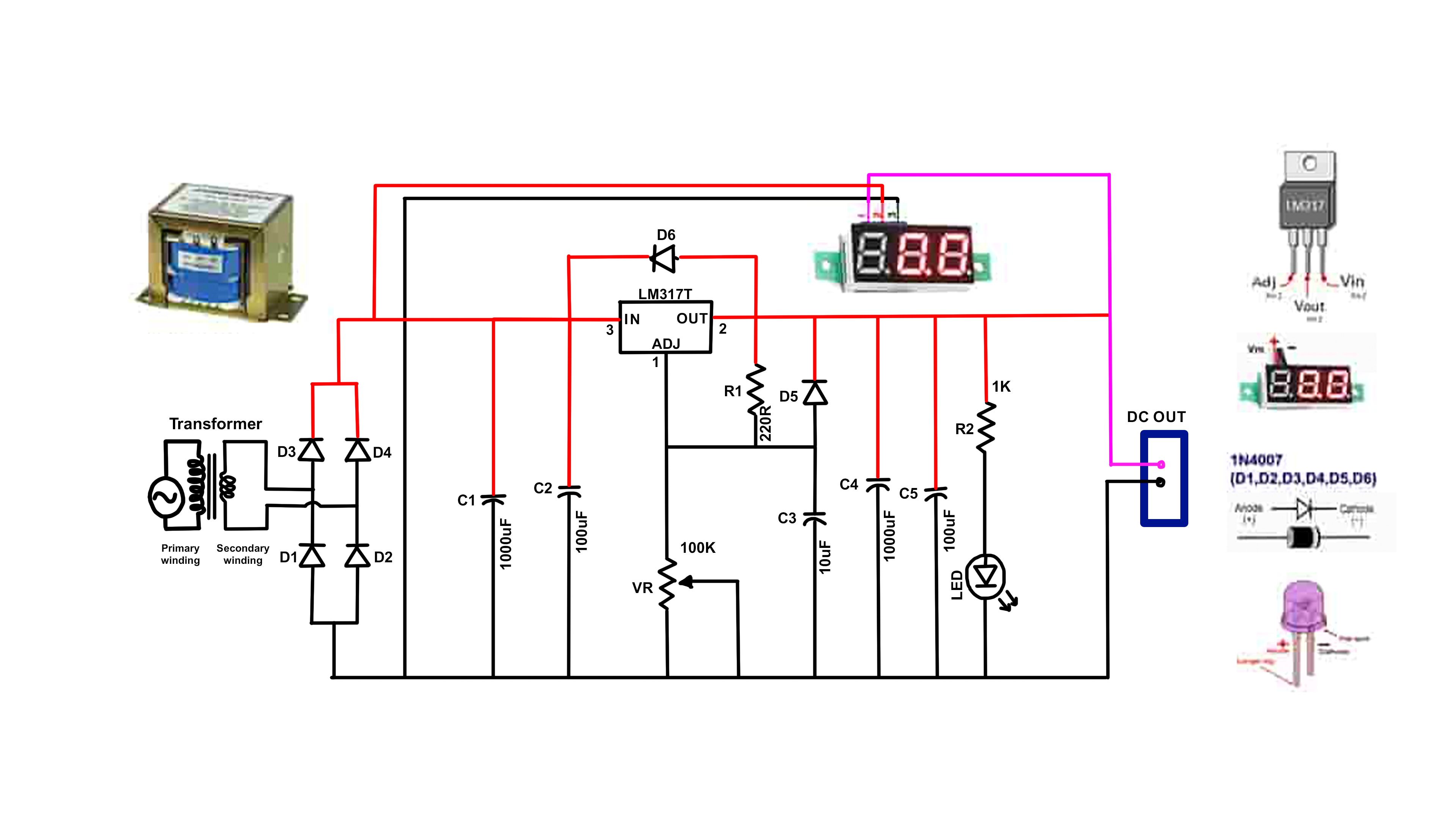

Circuit Diagram:

1. Transformer (12-0-12V): This steps down the mains voltage (220V/110V) to 12V AC. With a center tap, you'll get dual 12V lines, which will be rectified to DC.

1. Bridge Rectifier: Use two 1N5399 diodes to create a half-wave rectifier from the 12V AC into pulsating DC.

1. Smoothing Capacitor (1000uF): This capacitor smooths the pulsating DC from the rectifier into a more stable DC voltage.

1. LM317T Voltage Regulator: The LM317T regulates the voltage from 1.2V to 30V, depending on the setting of the variable resistor (potentiometer).

1. 104 Ceramic Capacitor: Placed at the output side of the LM317T to filter out high-frequency noise.

1. Variable Resistor: This allows you to adjust the output voltage easily.

1. Power Indicator (LED): A simple LED with a 330Ω resistor connected to the output of the transformer to indicate the system is on.

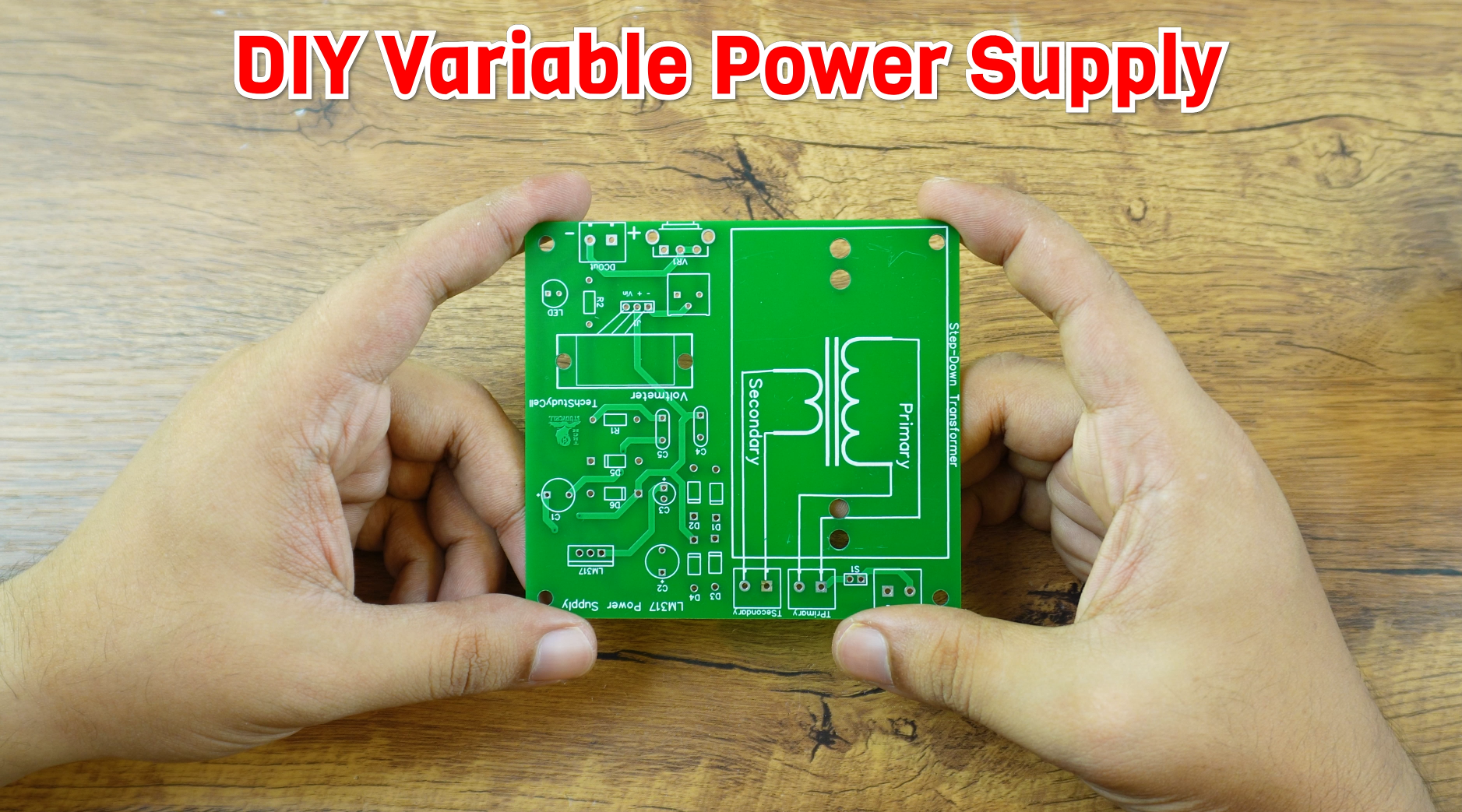

Step-by-Step Assembly:

https://www.pcbway.com/?from=technology4power

Every electronic device needs PCBs. Are you looking for the Best PCB order? PCBWay is one the best PCB manufacturing companies. Order 10 pcs PCB for only $5. Visit now https://www.pcbway.com/?from=technology4power

• Connect the primary side of the transformer to the mains (AC 220V/110V) carefully.

• On the secondary side, connect the center-tapped point to ground, and the two 12V leads to the rectifier diodes (1N5399).

• Arrange the two diodes in a half-wave rectifier configuration.

• Connect the 1000uF capacitor across the output of the rectifier to smooth the voltage.

• Connect the positive side of the rectified output to the input pin of the LM317T IC.

• Use the potentiometer to control the adjustable output voltage.

• Connect the output of the LM317T to the output terminals where your adjustable voltage will be available.

• Add the 104 ceramic capacitor across the output of the LM317T for noise filtering.

• Place the LED with its current-limiting resistor (330Ω) across the output to serve as a power indicator.

• Before powering up, double-check all connections. Ensure that the LM317T is securely fastened to a heat sink, as it will dissipate a significant amount of heat.

• Power on the circuit and use a multimeter to measure the output voltage. Adjust the variable resistor to get different voltages between 1.2V and 30V.

How It Works:

• The LM317T is a versatile voltage regulator IC that can adjust its output based on the values of external resistors. By incorporating a variable resistor (potentiometer), you can modify the output voltage on-the-fly, making it ideal for powering various electronics projects.

• The smoothing capacitor ensures that the output voltage is steady and free from ripples, while the ceramic capacitor filters any high-frequency noise.

• The power indicator LED is a simple but useful addition, showing when the power supply is active.

Applications:

• Testing electronic components like resistors, transistors, and diodes.

• Powering small DIY projects that require different voltage levels.

• Charging batteries with controlled voltage levels.

Conclusion:

The basic idea of this circuit is to step down the mains voltage to 12V AC using the transformer, rectify it into DC using diodes, smooth the DC with capacitors, and regulate the output using the LM317T IC.

Here’s how the components fit together:

1. Step 1: Transformer Setup

2. Step 2: Bridge Rectifier and Filtering

3. Step 3: Voltage Regulation with LM317T

4. Step 4: Adding Capacitors and LED

5. Step 5: Testing

Video Reference:

https://www.pcbway.com/?from=technology4power

Every electronic device needs PCBs. Are you looking for the Best PCB order? PCBWay is one the best PCB manufacturing companies. Order 10 pcs PCB for only $5. Visit now https://www.pcbway.com/?from=technology4power

This DIY adjustable power supply is a perfect addition to any electronics enthusiast's toolkit. The LM317T IC makes it easy to build and provides a wide range of output voltages suitable for many applications. With a few common components, you can have a versatile power supply that will last for years. Happy building!

Feel free to comment below if you have any questions or need further assistance with this project.
